Double Puddle Flange Range

No. 1 / 2 / 3 Retro Kit / Retro-Fit Puddle Flange

The WONDERCAP Double Puddle Flange is designed and built to meet the new NCC Requirements.

Available in 100mm, 80mm or 50mm the Retro Kit is designed to be cut to size.

Easy to use the retro-fit puddle flange is installed before the concrete is poured or after the floor has been installed, the Cast-In Kit test plug simplifies water testing of the waterproofing system.

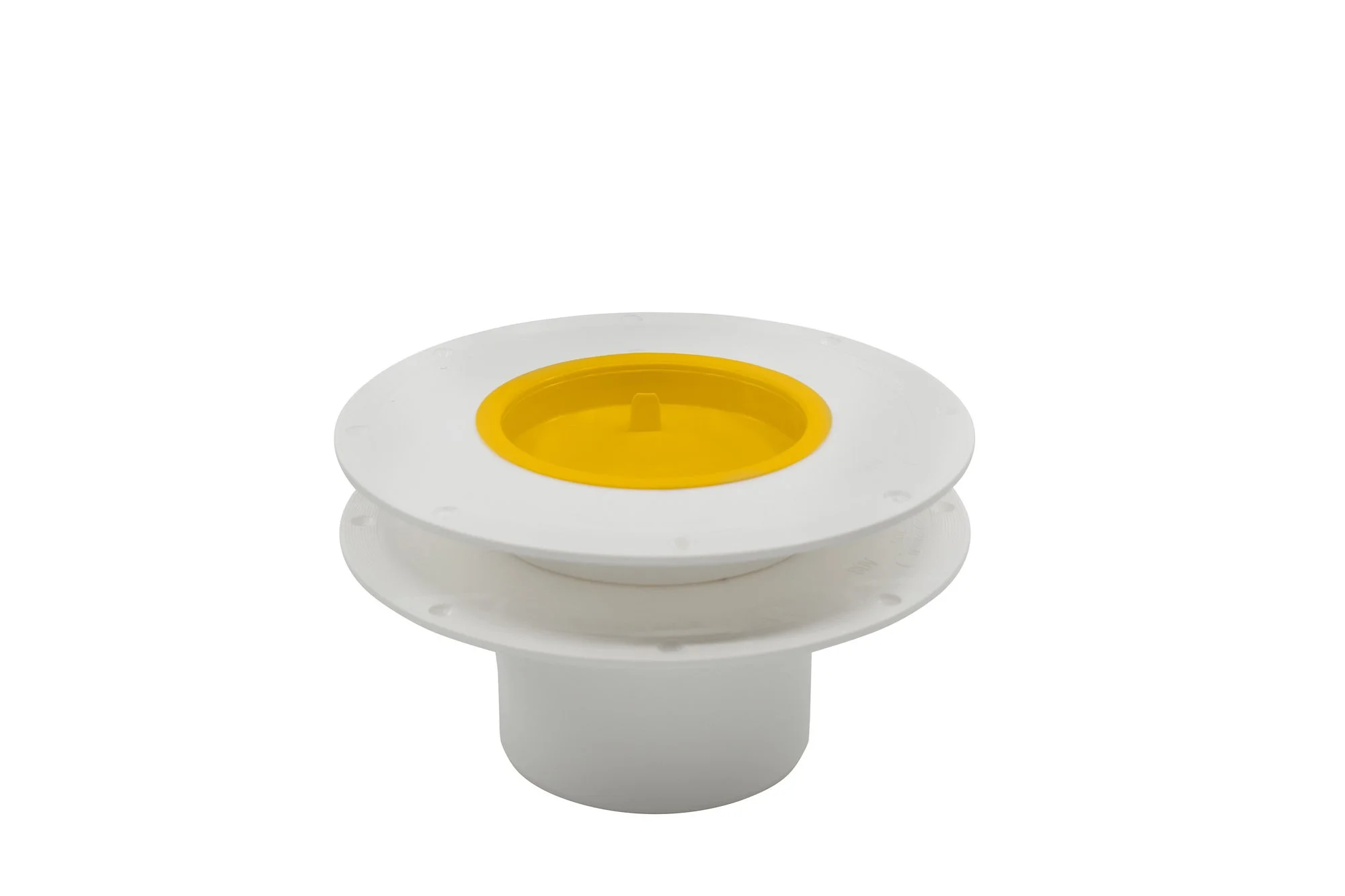

Adjusted cut down product.

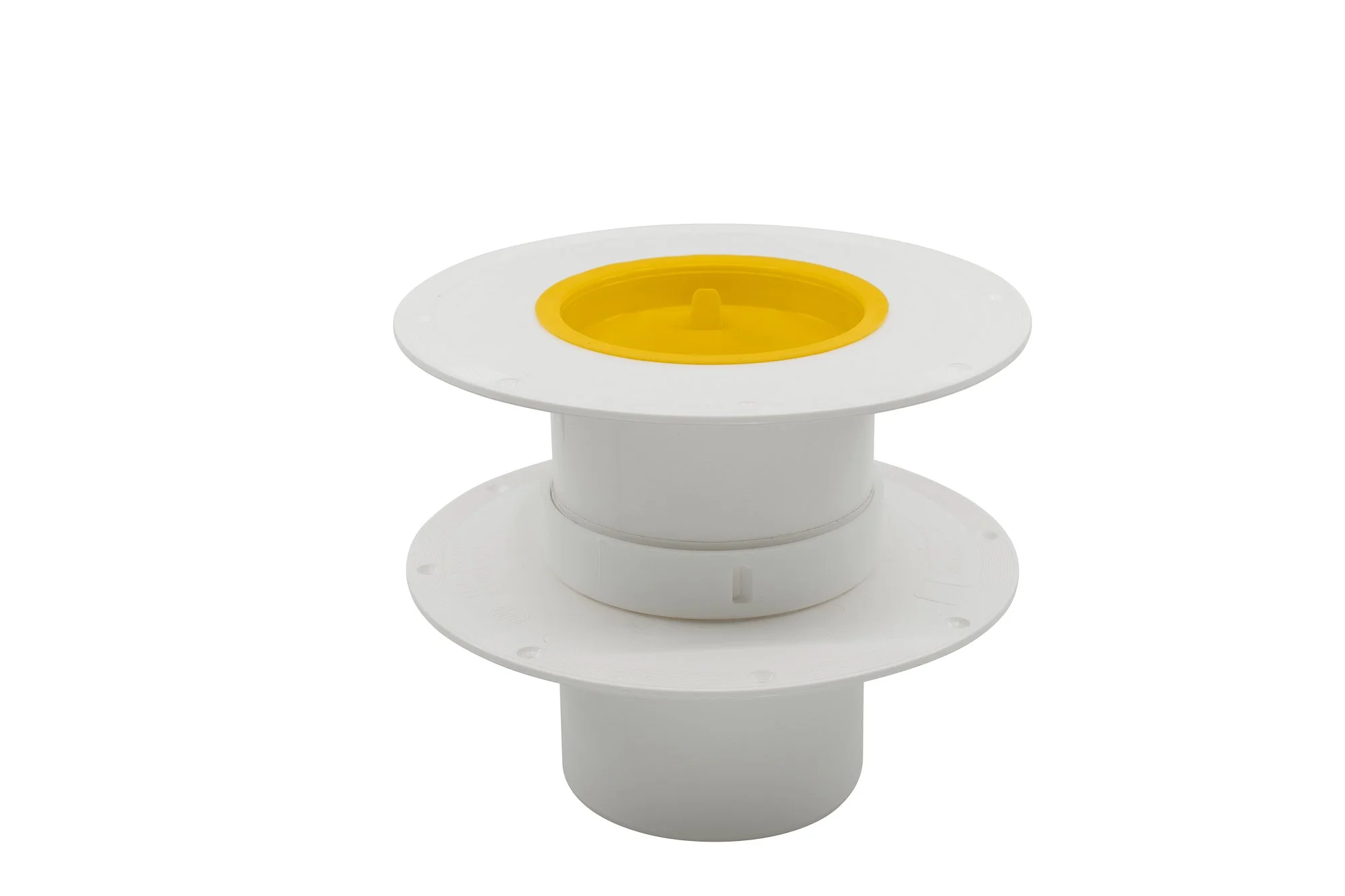

  • No. 1: Retro-Fit WC100RK 100mm / Retro-Fit WC100RPFTP 100mm / (DPF)

    Code: (DPF) 1. WC100RK / WC100RPFTP

    No. 2: Retro-Fit WC80RK 80mm / Retro-Fit WC100RPFTP 100mm / (DPF)

    Code: (DPF) 2. WC80RK / WC100RPFTP

    No. 3: Retro-Fit WC50RK 50mm / Retro-Fit WC100RPFTP 100mm / (DPF)

    Code: (DPF) 3. WC50RK / WC100RPFTP

    • Installed after the concrete / fibro cement flooring / timber floor has been installed.

    • Standard tiling bedding for wet areas.

    • Renovations and remodelling bathrooms.

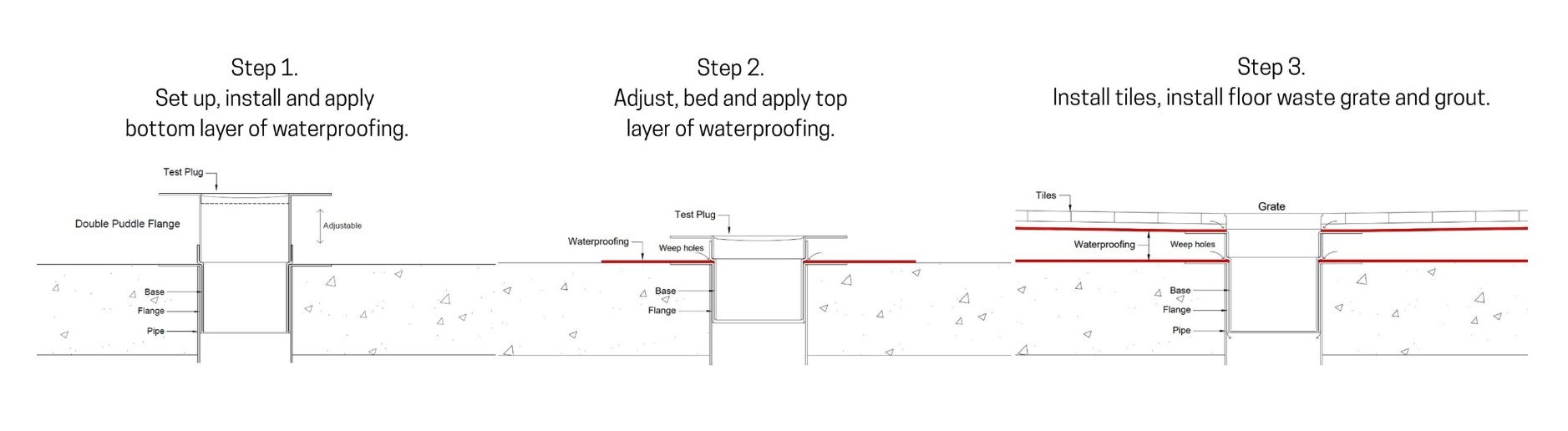

    1. Install the Bottom Puddle Flange with the provided kit onto the pipe riser.

    2. Apply the bottom layer of the waterproofing membrane.

    3. Mark, measure, and cut the Top Puddle Flange to the required bedding height.

    4. Insert the Top Puddle Flange dropper into the Bottom Puddle Flange Base Kit.

    5. Pack the area around and between the two Puddle Flanges with a structural bedding tile mix.

    6. Install the top layer of the waterproofing membrane around the Top Puddle Flange as needed.

  • The double puddle flange is certified and approved to meet NCC requirements.

    The high-quality ABS puddle flange features 8 fixing points, ensuring a secure attachment to any substrate flooring.

    Full installation guidelines, including detailed drawings, are available by clicking the installation link below.

    The triple weep holes effectively drain and remove any moisture build-up around the double flange connection.

    Available sizes: 100mm, 80mm, and 50mm PVC pipework.

    Refer to the installation link to select the appropriate pipe size and installation finish for your project.

    The flange is also available with a lightweight push-in test plug, which prevents construction debris from entering the open drain.

    The test plug simplifies water testing of the waterproofing system.





NCC

Compliant

WONDERCAP is the only product that meets the new National Construction Code’s requirements for wet areas.
