Retro-Fit Kit / Retro-Fit Puddle Flange

The WONDERCAP WC100 Double Puddle Flange is designed and built to meet the new NCC Requirements.

Easy to use and installed before the concrete is poured or after the floor has been installed, the Cast-In Kit test plug simplifies water testing of the waterproofing system.




  • Cast-In: 100mm
    WC100K / WC100SK / (DPF) Double Puddle Flange

    Cast-In:  80mm
    WC80K / WC100SK / (DPF) Double Puddle Flange

    Cast-In: 50mm
    WC50K / WC100SK / (DPF) Double Puddle Flange

  • Installed before the concrete is poured / after the floor has been installed.

    Fibro cement flooring / timber floor has been installed.

    Extra long Puddle Flange for the rebated slab wet areas where that extra bedding height is required.

    Standard Tiling Bedding for Wet Areas.

    1. Install and set the Cast-In Bottom Puddle Flange before the concrete is poured.

    2. Apply the bottom layer of the waterproofing membrane.

    3. Mark, measure, and account for the base and cap "grate adaptor." Cut the Top Puddle Flange to the required bedding height.

    4. Insert the Top Puddle Flange dropper into the Bottom Puddle Flange Base Kit.

    5. Pack around and between the two Puddle Flanges with a structural bedding tile mix.

    6. The flush-fitting puddle flange with the base cap can be raised to meet the tile height.

    7. Install the top layer of the waterproofing membrane around the Top Puddle Flange as required.


    DOWNLOAD INSTALLATION GUIDE

  • The high-quality ABS puddle flange features 8 fixing points, ensuring a secure attachment to any substrate flooring.

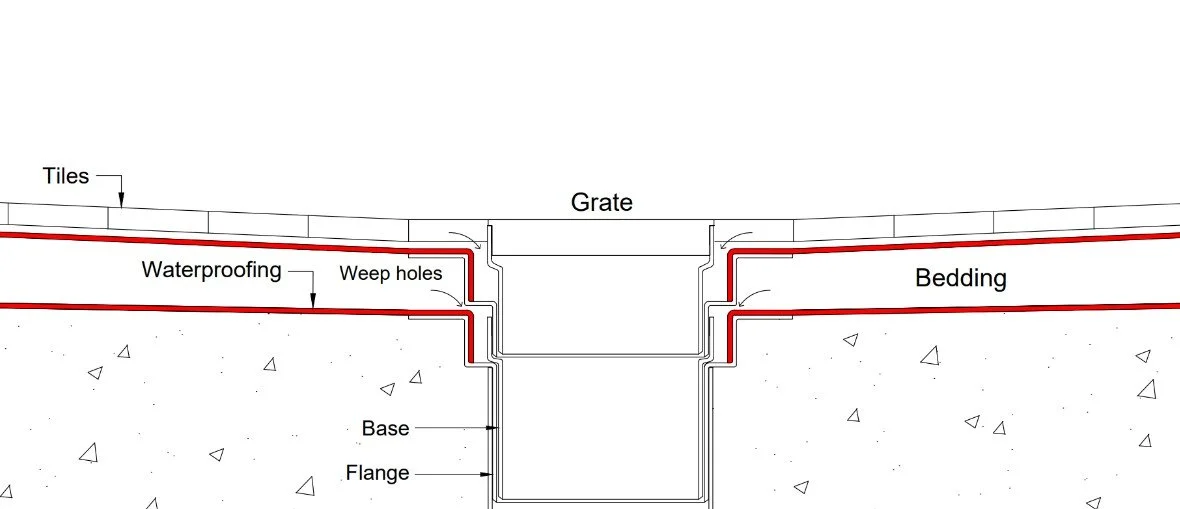

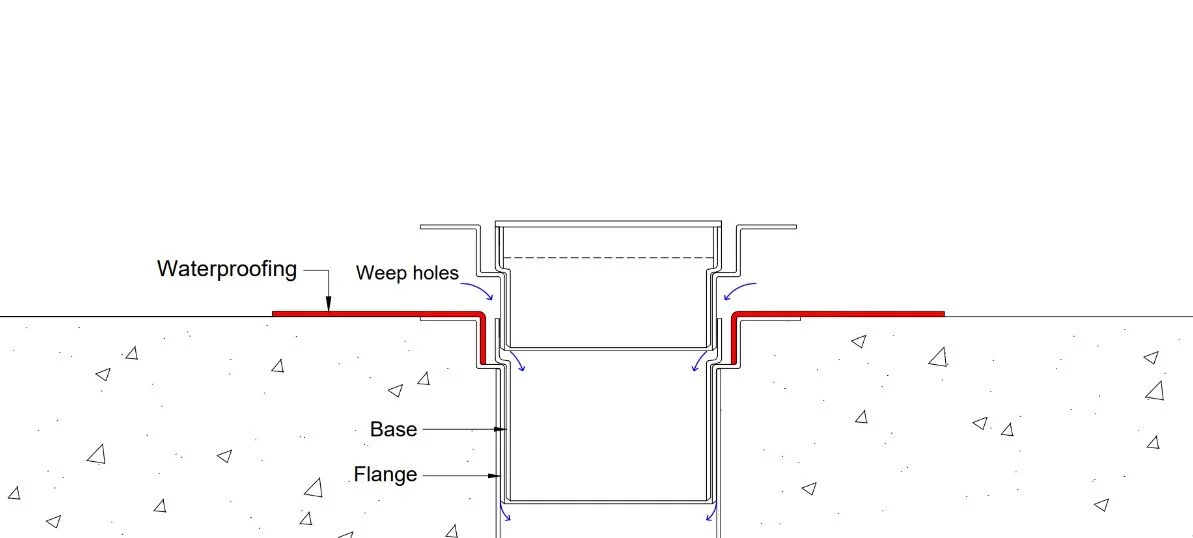

    Full installation guidelines, including detailed drawings, are available by clicking the installation link below.

    The triple weep holes effectively drain and remove any moisture build-up around the double flange connection.

    The base and cap provide a clean finish when paired with the floor waste grate.

    Refer to the installation link to select the appropriate pipe size and installation finish for your project.

    The flange is also available with a lightweight push-in test plug, which prevents construction debris from entering the open drain.

    The test plug simplifies water testing of the waterproofing system.



  • Install

  • Adjust

  • Finish

NCC

Compliant

WONDERCAP is the only product that meets the new National Construction Code’s requirements for wet areas.
