1. Installed before the concrete has been poured.

2. Installed after the fibro cement flooring and timber floors have been installed.

Installation for Concrete Slabs:

Step 1:

The wet areas can achieve positive grades to the floor and shower drains by installing the top of the Wondercap Kit 10mm below the finished concrete slab height.

Make sure the Wondercap cap and foam ring are firmly in place prior to concrete pour.

Step 2:

The concrete can be pumped and poured in and around the wet areas as required.

The top of the Wondercap is used as a datum point to work the finished concrete to the top of the Wondercap Kit (drain)

The construction strong Wondercap Kit can be easily troweled over and finished with the concrete troweling helicopter.

Download Installation Guide Here

Installation for Timber Floors & Cement Sheet Floors:

Set outs for Wondercap Kits:

Allow 140mm diameter hole for therebate area for the puddle flange

Allow 200mm diameter for the outsideedge of the puddle flange

Allow 3mm for the rebate for the puddleflange

Step 1:

Mark out the center locations for the shower and floor waste.

Step 2:

Cut the 140mm diameter hole for the rebate area.

Allow 200mm for the overall diameter of the puddle flange. Rebate 3mm to the outer edge of the puddle flange so the Wondercap Kit will fit flush with the floor.

Step 3:

Place the kit into the rebate and screw down flush with the floor.

Step 4:

Connect the below pipework accordingly.

Download Installation Guide Here

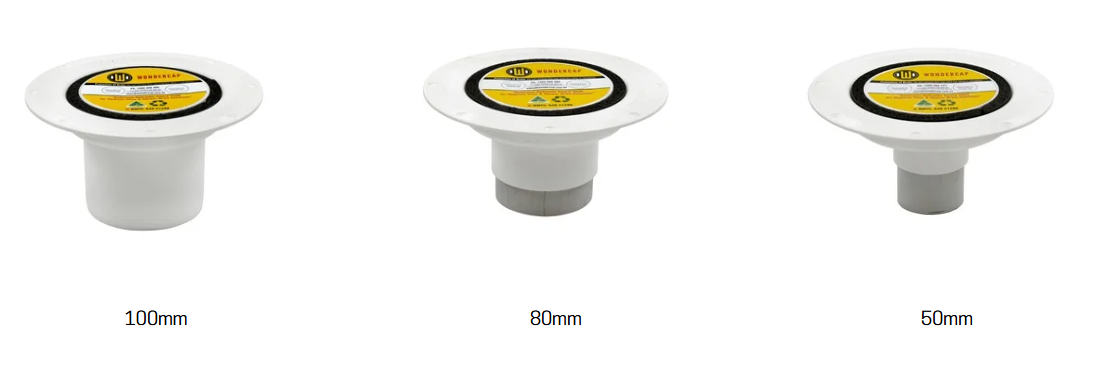

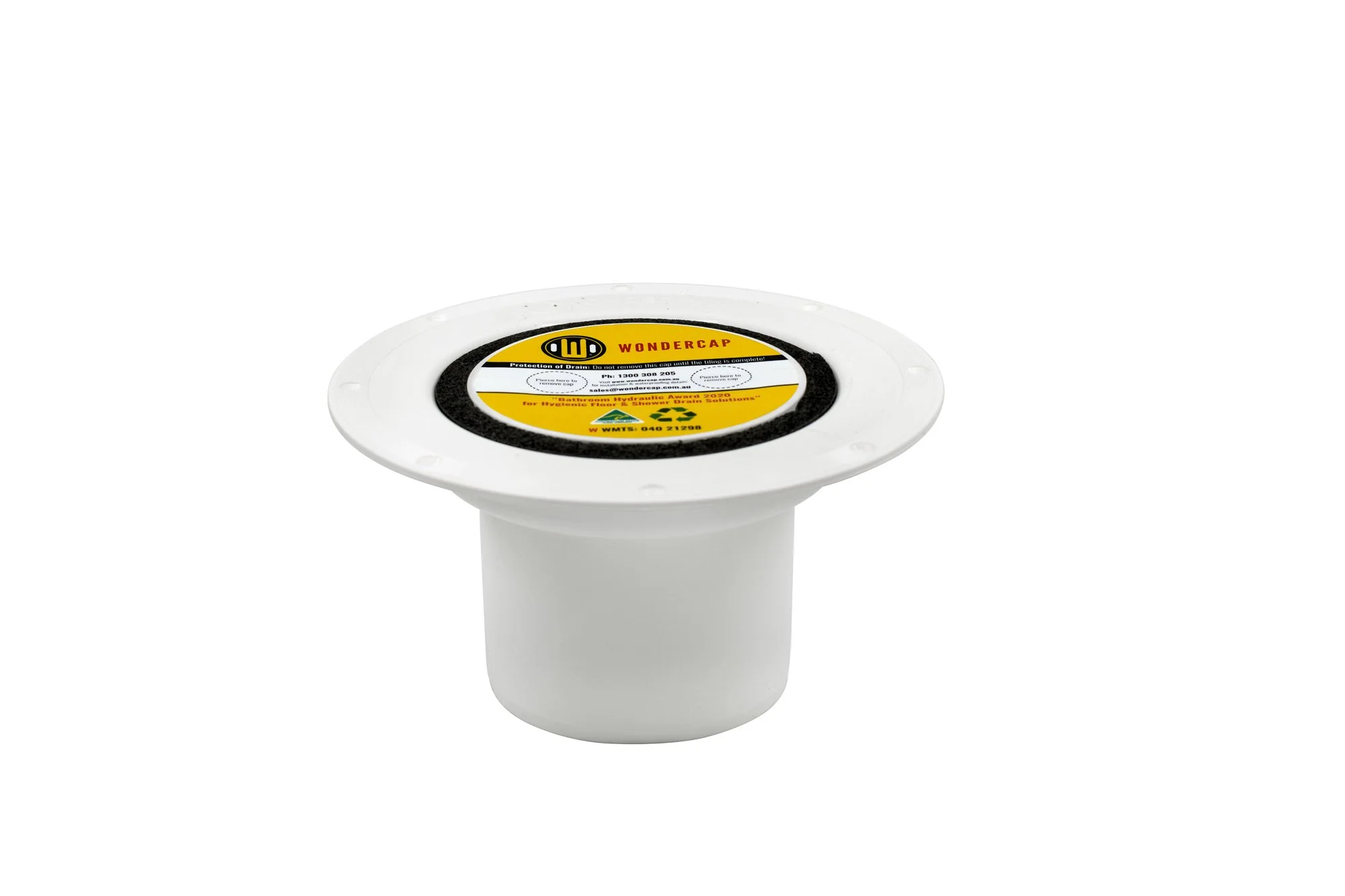

The high-quality ABS puddle flange is built to withstand the demanding tasks of pumping and trowelling concrete floors.

Its flush-fitting design provides a precise datum for the concreter, ensuring accurate grading of the concrete substrate for wet area floors and shower drains.

The flush-fitting puddle flange also offers the tiler the necessary minimum bedding depth at the floor and shower drain.

Additionally, the flush-fitting design accommodates Tile Insert Grates, which help reduce the overall height of the tile bedding.
