No. 13: Cast-In WC100K 100mm / Retro-Fit WC100RK 100mm / (DPF)

Code: (DPF) 10. WC100K / WC100RK

No. 14: Cast-In WC80K 80mm / Retro-Fit WC100RK 100mm / (DPF)

Code: (DPF) 10. WC80K / WC100RK

No. 14: Cast-In WC50K 50mm / Retro-Fit WC100RK 100mm / (DPF)

Code: (DPF) 10. WC50K / WC100RK

• Installed before the concrete is poured / after the floor has been installed.

• Fibro Cement flooring / Timber floor has been installed.

• Standard Tiling Bedding for Wet Areas.

1. Install and set the Cast-In Bottom Puddle Flange before the concrete is poured.

2. Apply the bottom layer of the waterproofing membrane.

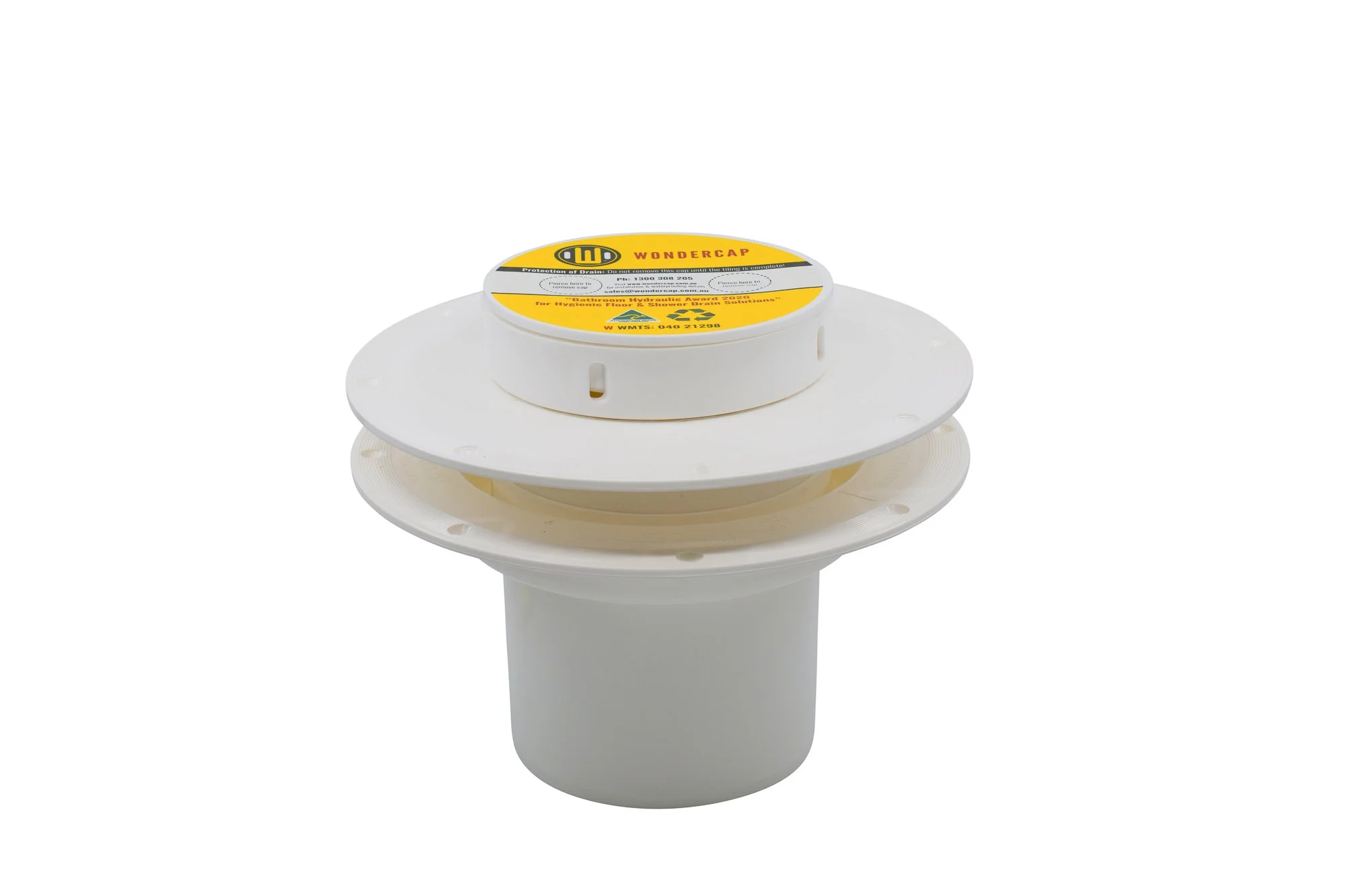

3. Mark, measure, and cut the Top Puddle Flange to the required bedding height.

4. Insert the Top Puddle Flange dropper into the Bottom Puddle Flange Base Kit.

5. Pack around and between the two Puddle Flanges with a structural bedding tile mix.

6. Install the top layer of the waterproofing membrane around the Top Puddle Flange as required.

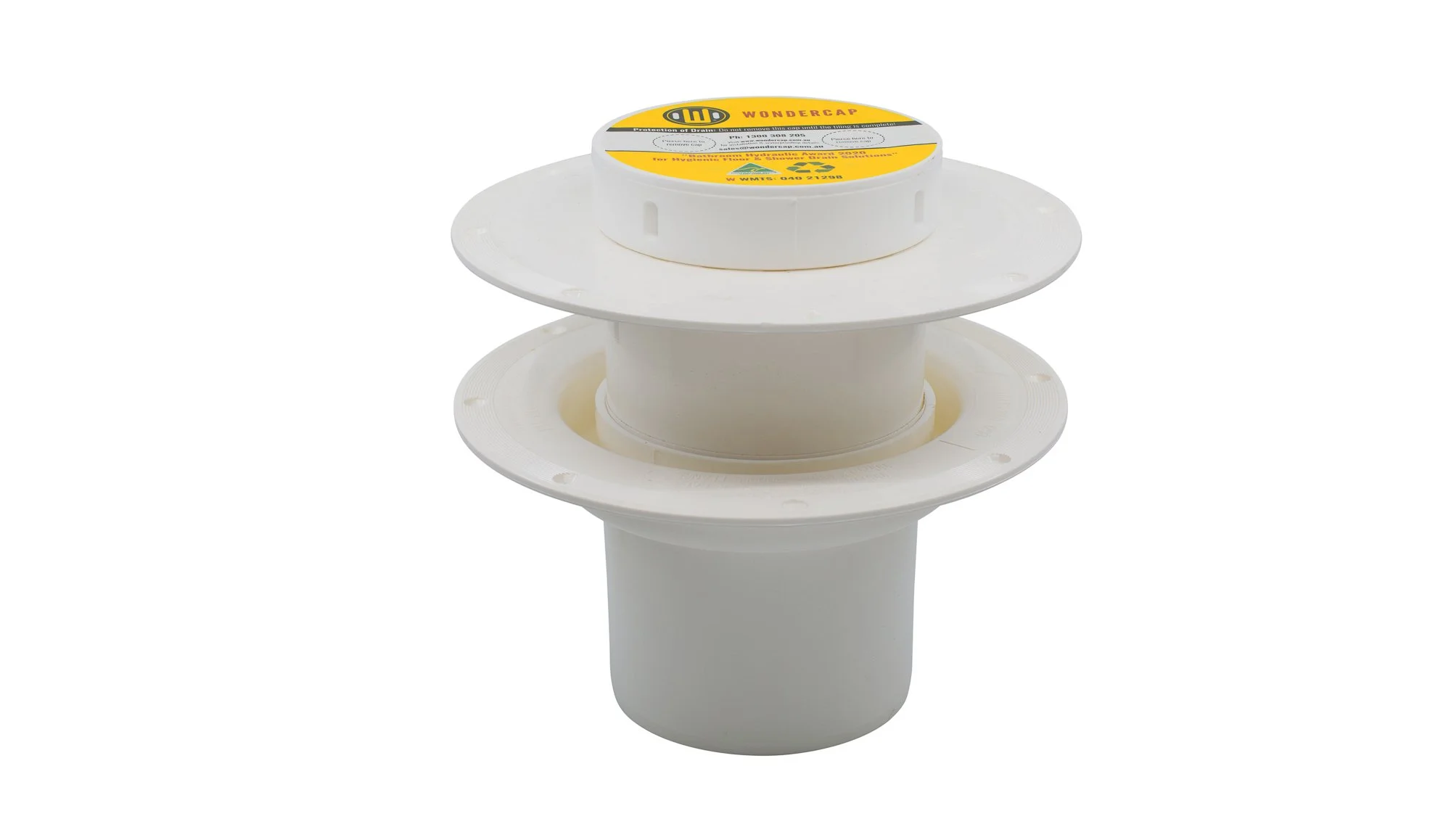

The double puddle flange is certified and approved to meet NCC requirements.

The high-quality ABS puddle flange features 8 fixing points, ensuring a secure attachment to any substrate flooring.

Full installation guidelines, including detailed drawings, are available by clicking the installation link below.

The triple weep holes effectively drain and remove any moisture build-up around the double flange connection.

The base and cap provide a clean finish when combined with the floor waste grate.

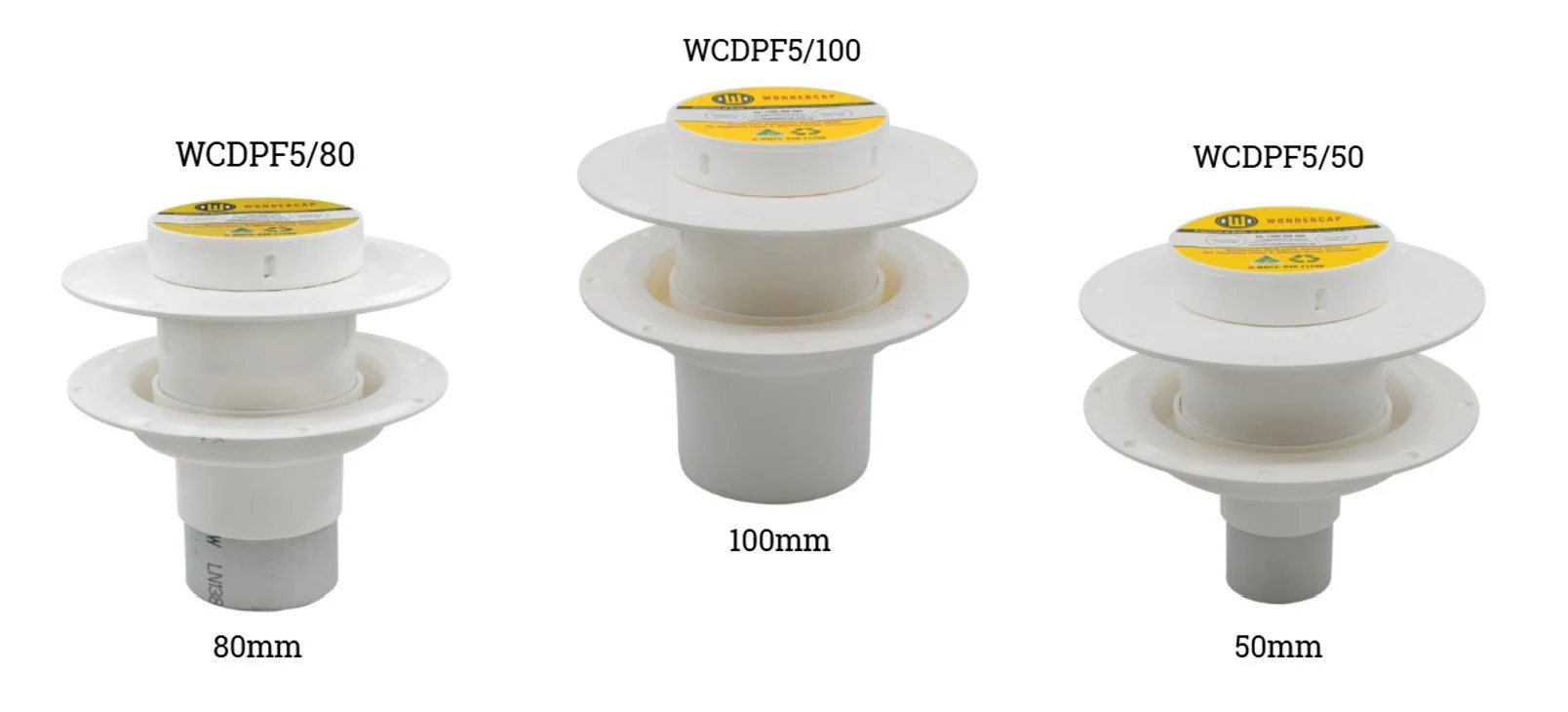

Available sizes: 100mm, 80mm, and 50mm PVC pipework.

Please refer to the installation link to select the appropriate pipe size and installation finish for your project.

The flange is also available with a lightweight push-in test plug, which prevents construction debris from entering the open drain.

The test plug simplifies water testing of the waterproofing system.
